Setting up an integration with Jira

To set up a Jira integration, follow these steps:

  1. Log in to Jira with an account that has access to your organization Settings page.

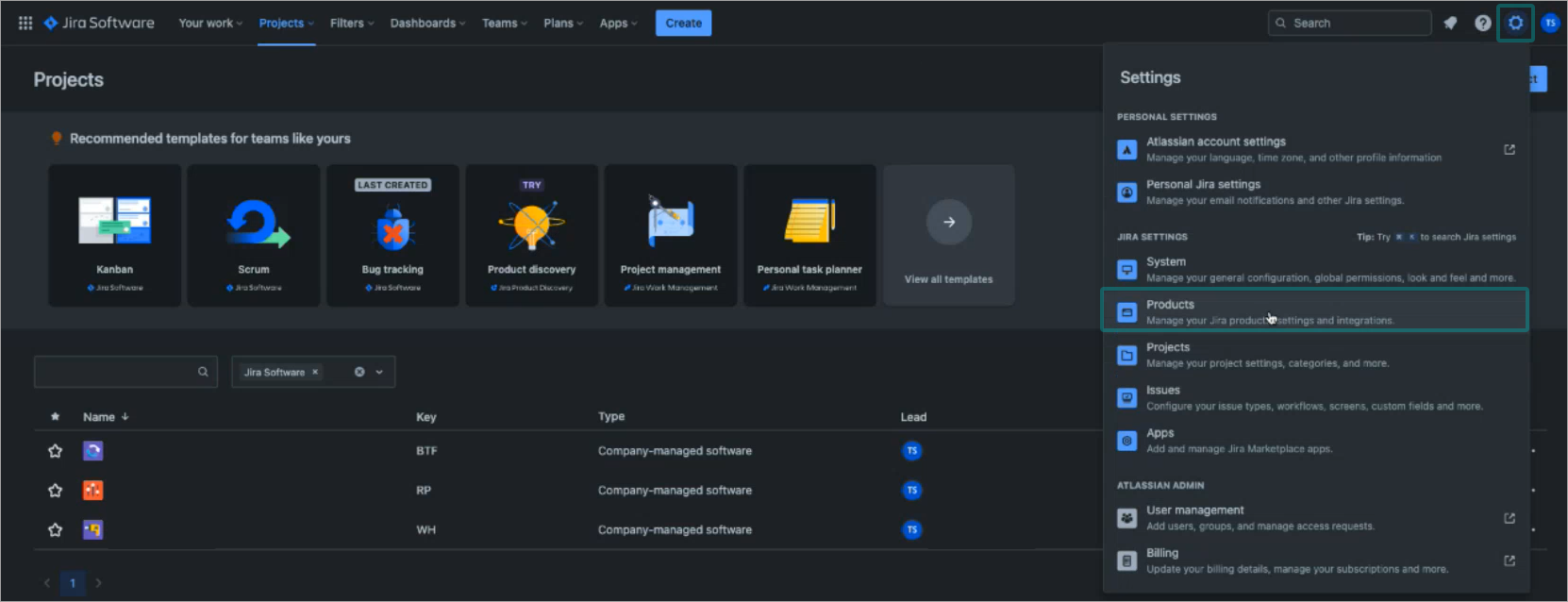

  2. Click the Settings button on the upper right side of the page and select Products:


    The Jira Software configuration page is displayed.

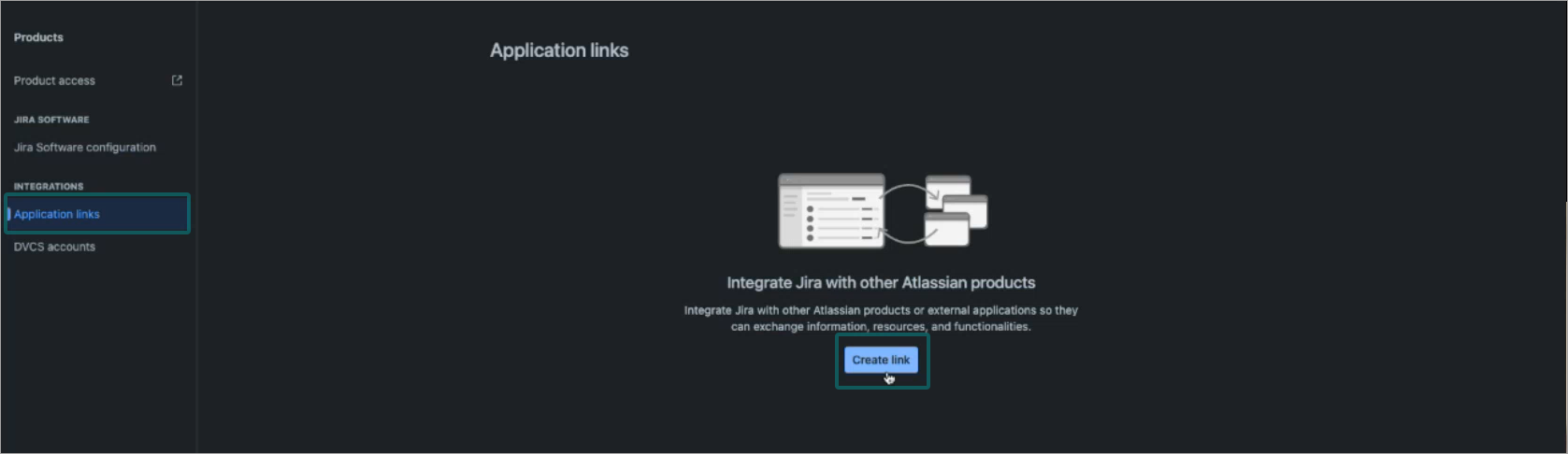

  3. Click the Applications links link from the menu on the left side of the page.

  4. Click the Create link button:

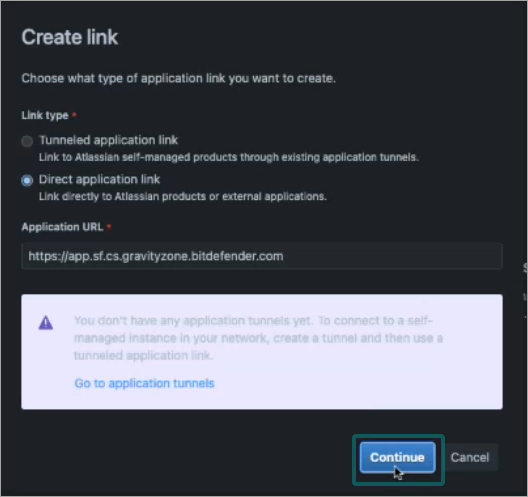

    The Create link window is displayed.

  5. Under Link type, make sure the Direct application link is selected.

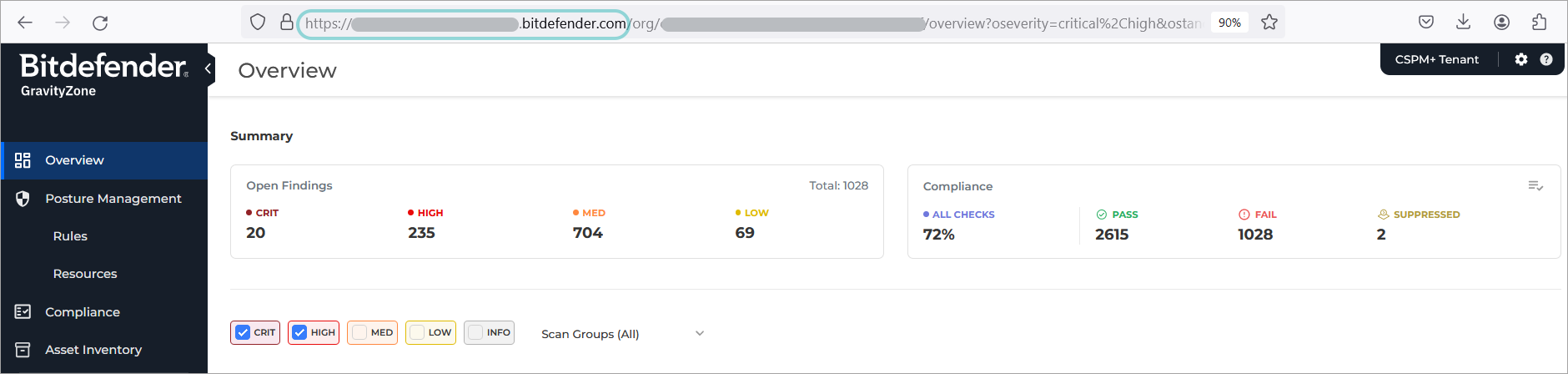

  6. Open a new browser tab and log in to your Cloud Security console.

  7. Copy the first part of the URL, starting from https and up to

  8. Go back to the browser tab with Jira and paste the URL into the Application URL field.

  9. Click Continue

  10. In the Configure Application URL window, the new URL field will be auto filled with the URL you entered in the previous step.

  11. Click Continue

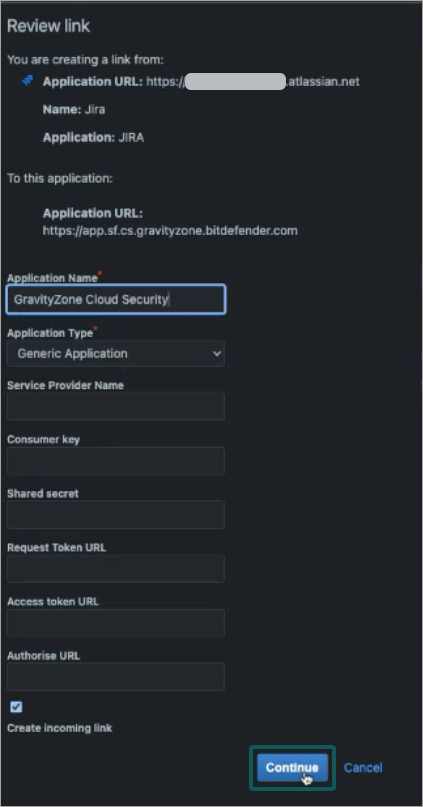

    The Review link window is displayed.

  12. Fill in the following information:

    • Under Application Name, type in a descriptive name, such as GravityZone Cloud Security.

    • Under Application Type, select Generic Application.

    • Select the Create incoming link checkbox.

  13. Click Continue.


    Additional information is displayed under the Review link window.

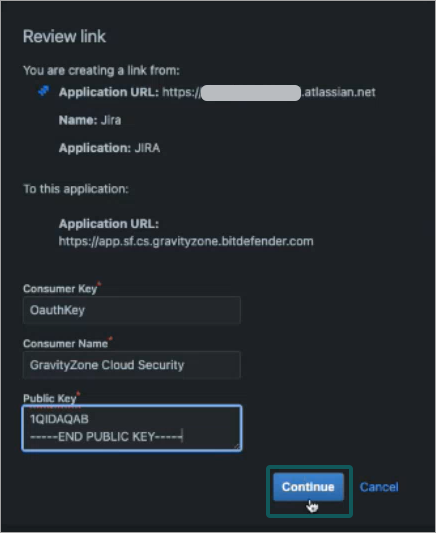

  14. Fill in the following information:

    • Under Consumer Key, type in OauthKey.

    • In the Consumer Name field type in a descriptive name, such as GravityZone Cloud Security.

    • Copy the below code and paste it under Public Key

      -----BEGIN PUBLIC KEY-----
      -----END PUBLIC KEY-----
  15. Click Continue:


    The Application links page is displayed, along with a new entry, if the creation of the entry has been successful.

  16. Copy the first part of the URL, starting from https and up to

  17. Go back to the Cloud Security console browser tab.

  18. Go to the Integrations page.

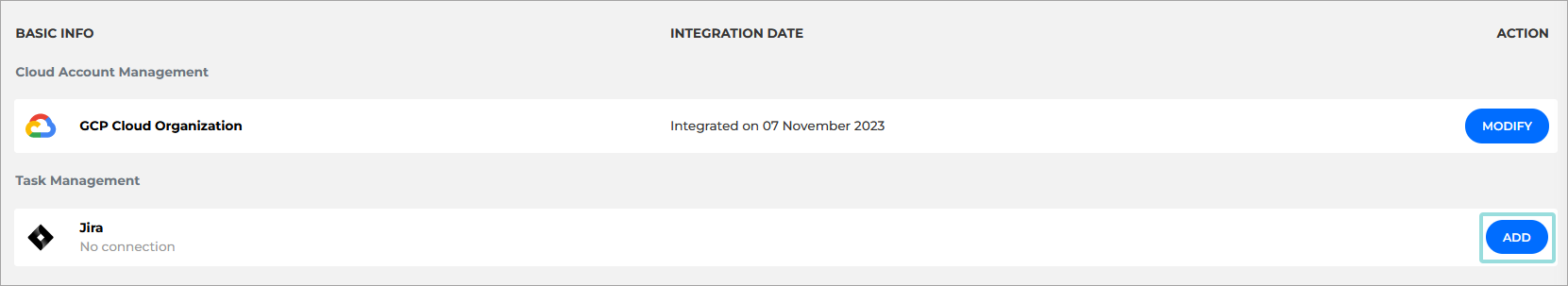

  19. Under the Task Management section, click the Add button for the Jira integration:

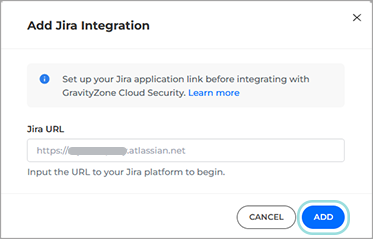

    The Add Jira integration window is displayed.

  20. Paste the URL you copied in step 16 in the Jira URL field.

  21. Click Add:

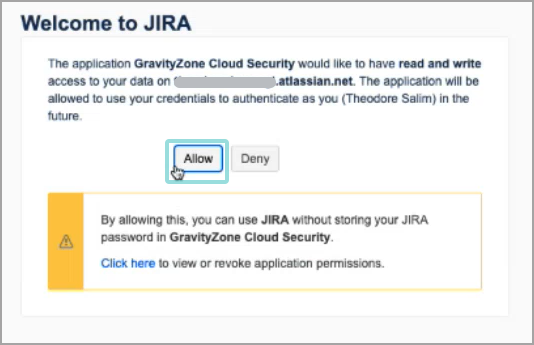

    A Welcome to Jira window appears.

  22. Click Allow to finish the integration.


The integration is now complete.

The No connection status is no longer showing under Jira, and today's date is displayed under the Integration date column.
